XY3501 Module
- No.:
- Brand :
- Weight:

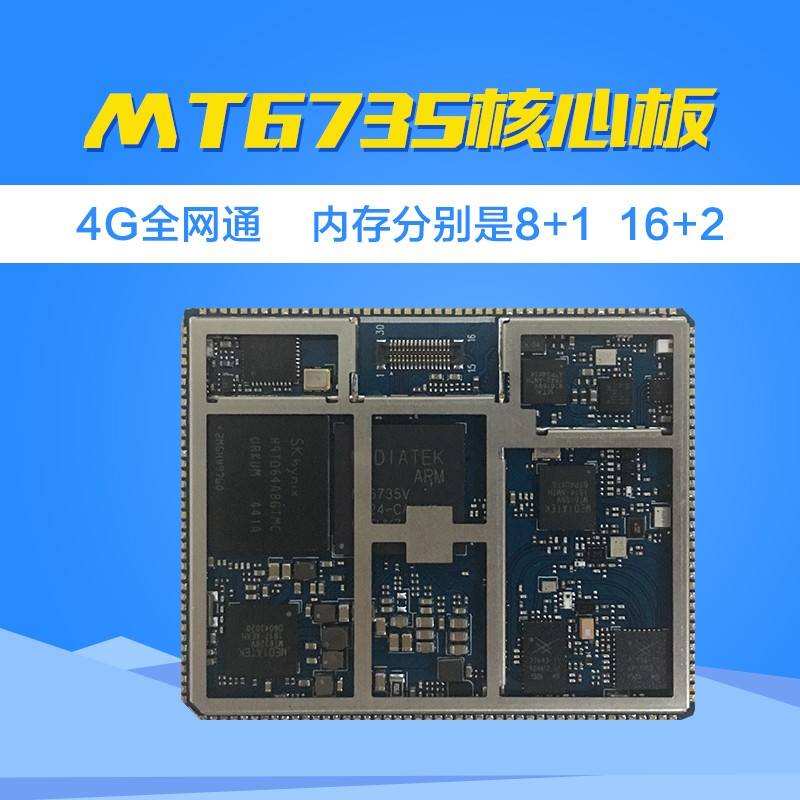

XY3501 Module is a LTE module based on Mediatek MT6735 platform, the module intergrated Application Processor and LTE modem, run on Android 5.1 operation system. it can be second developed on th
XY3501 Module is a LTE module based on Mediatek MT6735 platform, the module intergrated Application Processor and LTE modem, run on Android 5.1 operation system. it can be second developed on the Application Processor and Android System, There are many peripheral interfaces you can use to connect and control other devices, like I2C, SPI, UART, USB OTG, GPIO, INT etc. the module is powerful and cost-effective, it has good expandability and flexibility in design, can meet various demands on products. It can be widely used on Consumer Electronics and Industry Equipment etc. When there are a demand of nearby or remote communication, smarter device, Android system, You can choose to use our Core Board.
Main Characteristic
n OS
Android 5.1 (64bit)
n CPU
Quad-core ARM Cortex-A53 up to 1.3Ghz
512KB unified L2 cache
n ROM & RAM
8GB eMMC + 8Gb LPDDR3（optional 16GB+16Gb、32GB+16Gb）
n Connectivity
WIFI: Support 802.11 a/b/g/n
FM: FM Receiver
Bluetooth: BT 4.0
GPS: GPS/Beidou/Galileo/Glonass
A-GPS: Support
n Band Support
TDD_LTE: Band38/39/40/41(2555~2655MHz)
FDD_LTE: Band3/1
WCDMA: Band1/8
TDSCDMA: Band34/39
GSM/GPRS/EDGE: Band3/8
GPRS/EDGE Class 12
CDMA2000（EVDO） 800
n User interface
Display：Up to Full HD 1080P (1080x1920)
Touch Panel：Captive Touch Panel
Front Camera：13MP
Rear Camera：13MP
Product Spec.
n Main Board design：Core board & Mother board.
n Supply Voltage：3.6V~4.5V
n dimension：40mm * 50mm *2.8mm
n Operation Temperature（-20°～+70°Centigrade）
n Four Antenna interface（WIFI/BT, GPS, LTE Main, LTE Diversity Rx）
Peripheral Interface
n 1x SDIO2.0
n 1x SPI
n 2x SIM Card
n 4x UART
n 4x I2C
n Audio：2x MIC input, 1x Speaker output, 1x Receiver output, 1x Earphone output.
n 1x USB OTG
n 3*3 matrix keyboard interface.
n Multiple external interrupt input.
Application Scenarios
n Handheld POS machine
n Mobile Data Terminal Equipment
n Industry Control
n Vehicle Navigator
